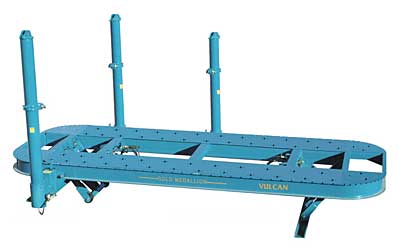

The Vulcan
Vulcan
  • Deck length 24 to 30 ft.
  • Deck width 102 in.

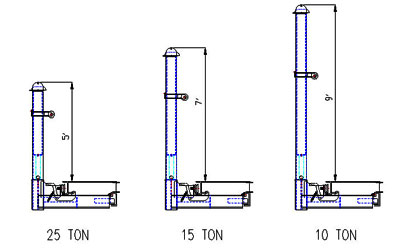

  • 15 Ton towers - 14 in. stroke
  • 15 Ton Raising Rams
  • Removable front and rear crossmembers
  • Removable ramps
  • True 360 degree pulling
  • Tower height 91 in.
  • Easy rolling bearing style carriages
  • Available in single tilt or 4-position multi-height double-tilt for drive on drive off capability
  • Availble air on optional electric hydraulics
  • Optional automotive style pinch weld clamping
  • Optional full frame clamping

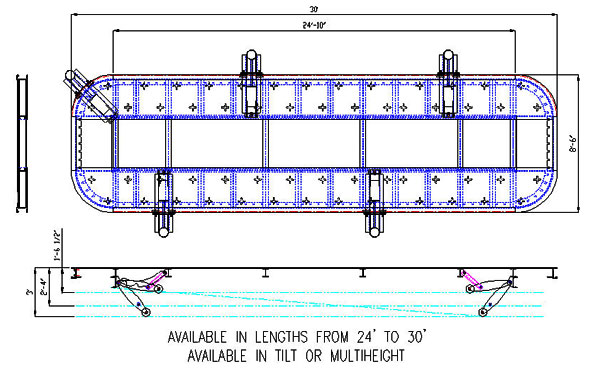

Vulcan Dimensions

Vulcan Configurations
