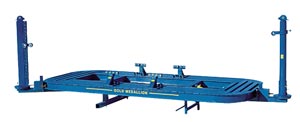

The Titleist



Available with Multi Height Lift

Portable
Convenient
Fast

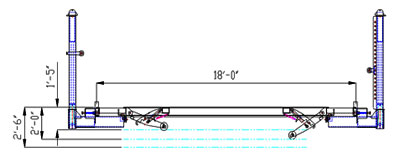

Titleist Multi-height

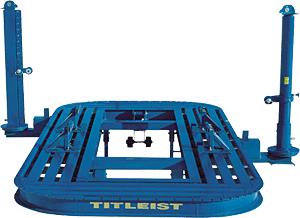

Titleist

  • Choose a deck length of 16, 18, or 20 feet.
  • Choose round or standard style towers
  • A very portable rack
  • Lightweight removable ramps
  • Newer detente style pinch weld clamps
  • Infinite tie down locations
  • Heavy double bearing casters
  • Excellent loading angle
  • Over 12 inches of chain travel
  • Choose from a variety of accessories
  • Quality Enerpac hydraulics


RACK SPECIFICATIONS

Radius of Pulling 360 degrees
Deck Width 90 in.
Deck length choices 16, 18 and 20 ft.
Treadway Width 26.5 in.
Center Opening 37 in.
Deck Height 26 in.
Tower Height 88 in.
Pinch Weld Height 11 in.
Hydraulic Enerpac 10 ton air/hyd.


OPTIONAL EQUIPMENT


Power Lifting Bar
You'll love this option for overhead pulls, roof repairs or when changing an engine cradle.

Jacking Beam
Our jacking beam will give you the ability to make repairs in the center of the rack.

Full Frame Holding
Our full frame stands are very affordable. This option makes working on full frame vehicles safe, fast and easy.


OPTIONAL RACK ACCESSORIES AVAILABLE


Tool Board #1

Tool Board #2

Tool Board #3

Tool Board #4

Pro Gauge Package Includes:
  • Deluxe centerline gauges with magnets
  • Strut tower alignment gauge
  • Universal tram instrument

Air Jack
  • Deluxe 2 and 3 bag air jacks by Rak Jak
